Label numbers with SI prefixes (2 kg, 5 mm, etc)

label_number_si() is deprecated because the previous unit didn't actually use SI units, but instead used the so called "short scale". You can now get the same results as before with label_number(scale_cut = cut_short_scale()), or if you want correct SI units, label_number(scale_cut = cut_si("unit")).

label_number_si(unit = "", accuracy = NULL, scale = 1, suffix = "", ...)

Arguments

unit

Unit of measurement (e.g. "m" for meter, the SI unit of length).

accuracy

A number to round to. Use (e.g.) 0.01 to show 2 decimal places of precision. If NULL, the default, uses a heuristic that should ensure breaks have the minimum number of digits needed to show the difference between adjacent values.

Applied to rescaled data.

scale

A scaling factor: x will be multiplied by scale before formatting. This is useful if the underlying data is already using an SI prefix.

suffix

Additional text to display after the number.

...

Other arguments passed on to base::format().

Value

All label_() functions return a "labelling" function, i.e. a function that takes a vector x and returns a character vector of length(x) giving a label for each input value. Labelling functions are designed to be used with the labels argument of ggplot2 scales. The examples demonstrate their use with x scales, but they work similarly for all scales, including those that generate legends rather than axes.

See also

Other labels for continuous scales: label_bytes(), label_dollar(), label_number_auto(), label_ordinal(), label_parse(), label_percent(), label_pvalue(), label_scientific()

Other labels for log scales: label_bytes(), label_log(), label_scientific()

Examples

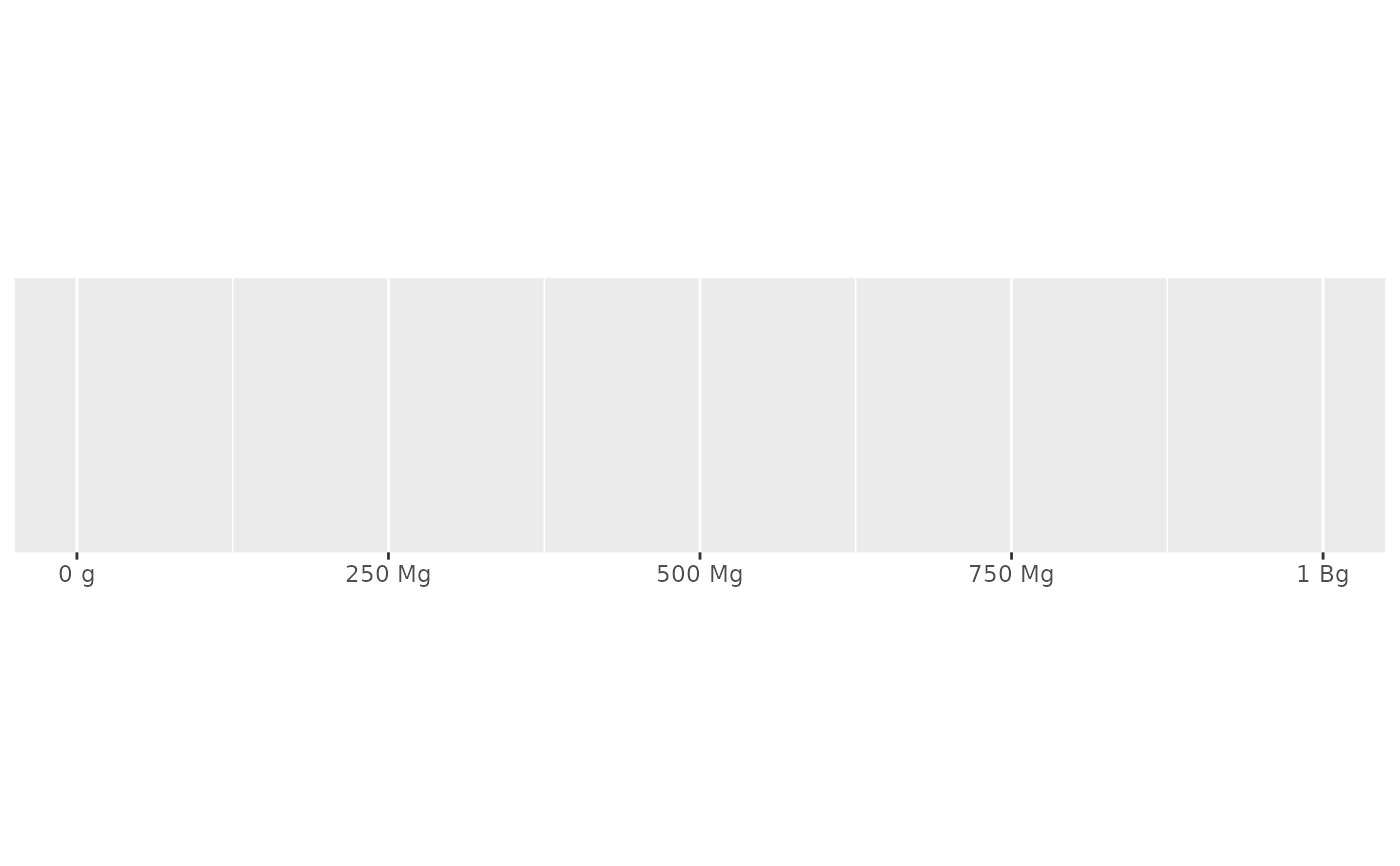

# label_number_si() doesn't actually produce SI prefixes:
demo_continuous(c(1, 1e9), labels = label_number_si("g"))
#> scale_x_continuous(labels = label_number_si("g"))
#> Warning: `label_number_si()` was deprecated in scales 1.2.0.
#> Please use the `scale_cut` argument of `label_number()` instead.
#> This warning is displayed once every 8 hours.
#> Call `lifecycle::last_lifecycle_warnings()` to see where this warning was generated.

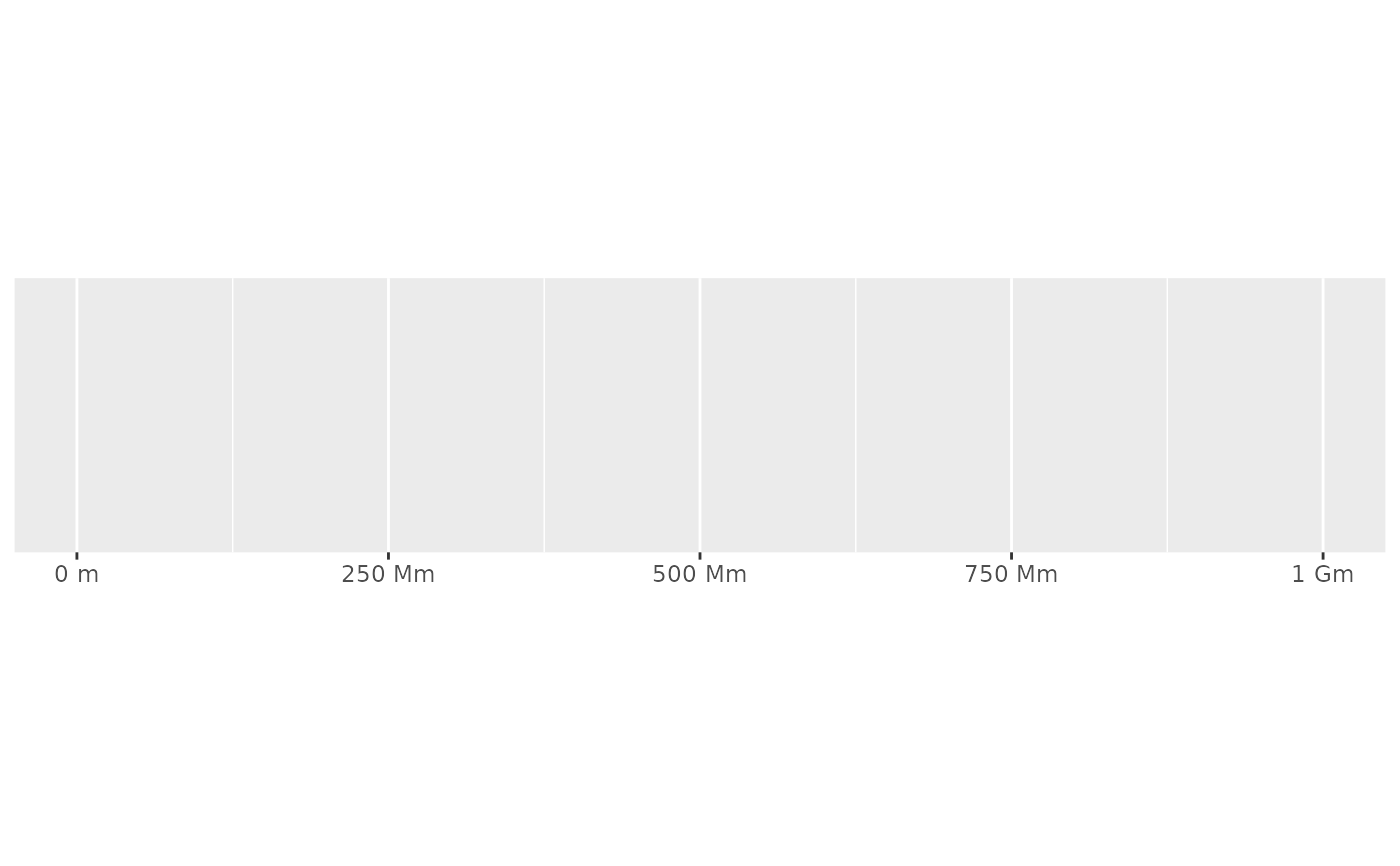

# If you want real SI prefixes, use cut_si()
demo_continuous(c(1, 1e9), labels = label_number(scale_cut = cut_si("m")))
#> scale_x_continuous(labels = label_number(scale_cut = cut_si("m")))

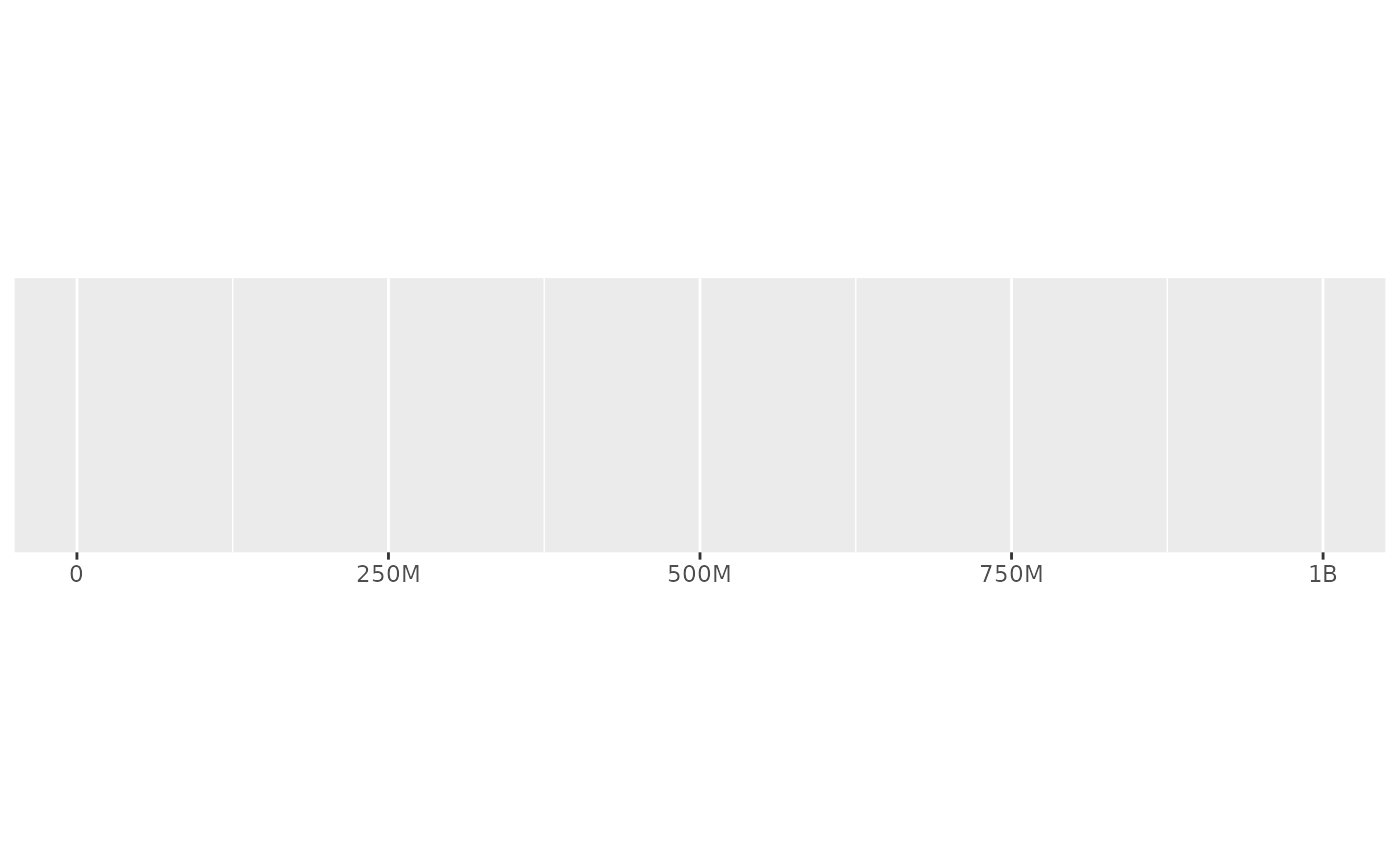

# If you want the existing behavior, use cut_short_scale()
demo_continuous(c(1, 1e9), labels = label_number(scale_cut = cut_short_scale()))
#> scale_x_continuous(labels = label_number(scale_cut = cut_short_scale()))
