Layer functions

Layer functions

layer_h(x, hline = gh(), add_layers = TRUE, ...)

layer_s(x, smooth = gs(), add_layers = TRUE, ...)

layer_a(x, abline = ga(), add_layers = TRUE, ...)

layer_hs(x, ...)

layer_sh(x, ...)

layer_as(x, ...)

layer_sa(x, ...)

layer_dots(x, ...)

gs(method = "loess", se = FALSE, lty = 2, lwd = 1.35,
  col = .ggblue, ...)

ga(intercept = 0, slope = 1, lwd = 1.35, col = "darkgrey", ...)

gh(yintercept = 0, lwd = 1.35, col = "darkgrey", ...)

Arguments

x	a ggplot object
hline	list of arguments for geom_hline
add_layers	if FALSE no layers are added from layer_s, layer_a, layer_h, or combinations
...	passed to layering functions and geoms
smooth	list of arguments for geom_smooth
abline	list of arguments for geom_abline
method	passed to the appropriate geom_
se	passed to the appropriate geom_
lty	passed to the appropriate geom_
lwd	passed to the appropriate geom_
col	passed to the appropriate geom_
intercept	passed to geom_abline
slope	passed to geom_abline
yintercept	passed to geom_hline

Details

Function names can be decoded as: h indicates horizontal reference line, s indicates smoothing line, a indicates abline (typically a line of identity). The order of the the codes indicates the order in which the layers are applied. For example, layer_hs means to first add a horizontal reference line and then add a smoothing line. Likewise, layer_s adds a smoother, layer_a adds identity line, and layer_y adds a horizontal reference line.

gs, ga, and gh are helper functions to create default arguments to geom_smooth, geom_abline, and geom_hline, respectively. The gx series of functions are not exported.

See also

pm_smooth, pm_hline, pm_abline

Examples

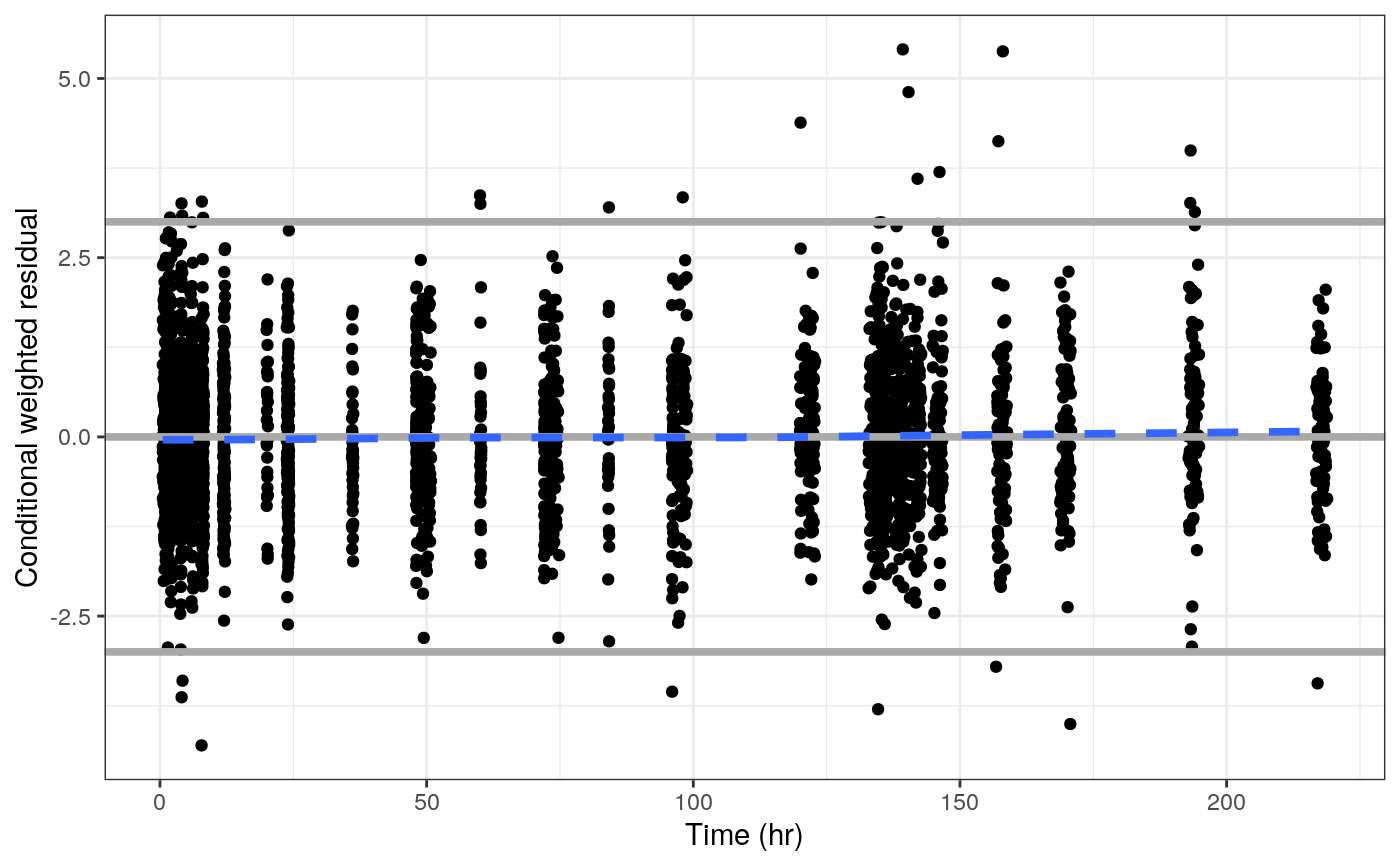

df <- dplyr::filter(pmplots_data(), EVID==0 & BLQ==0)

cwresi_time(df) + geom_3s()
#> Creating CWRES column from CWRESI

pmplots:::gs()
#> $method
#> [1] "loess"
#>
#> $se
#> [1] FALSE
#>
#> $lty
#> [1] 2
#>
#> $lwd
#> [1] 1.35
#>
#> $col
#> [1] "#3366FF"
#>
